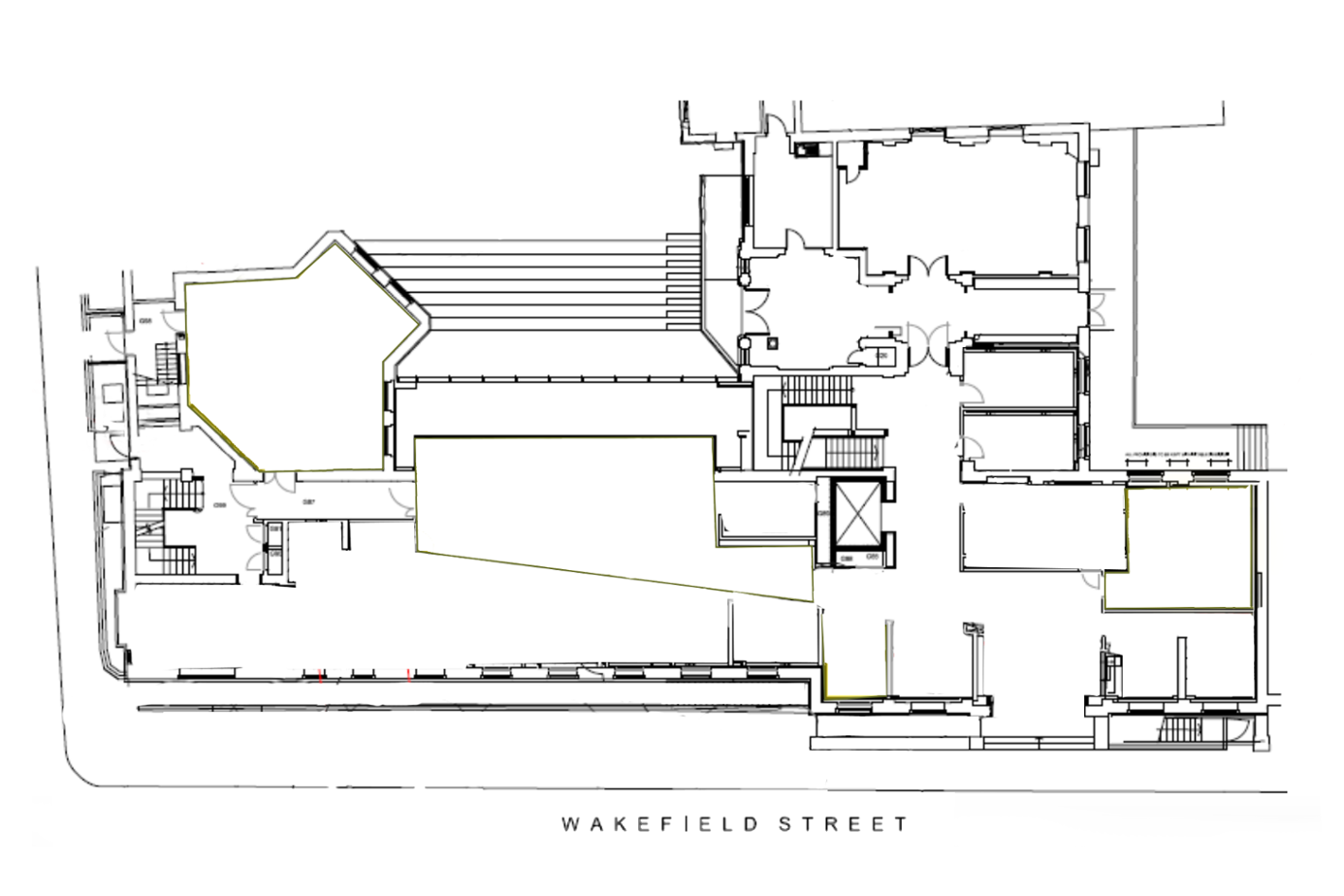

Explore each floor of the building and discover more
about the acoustic performance of your environment.
Identify sources of noise and find out key
information regarding acoustic levels.

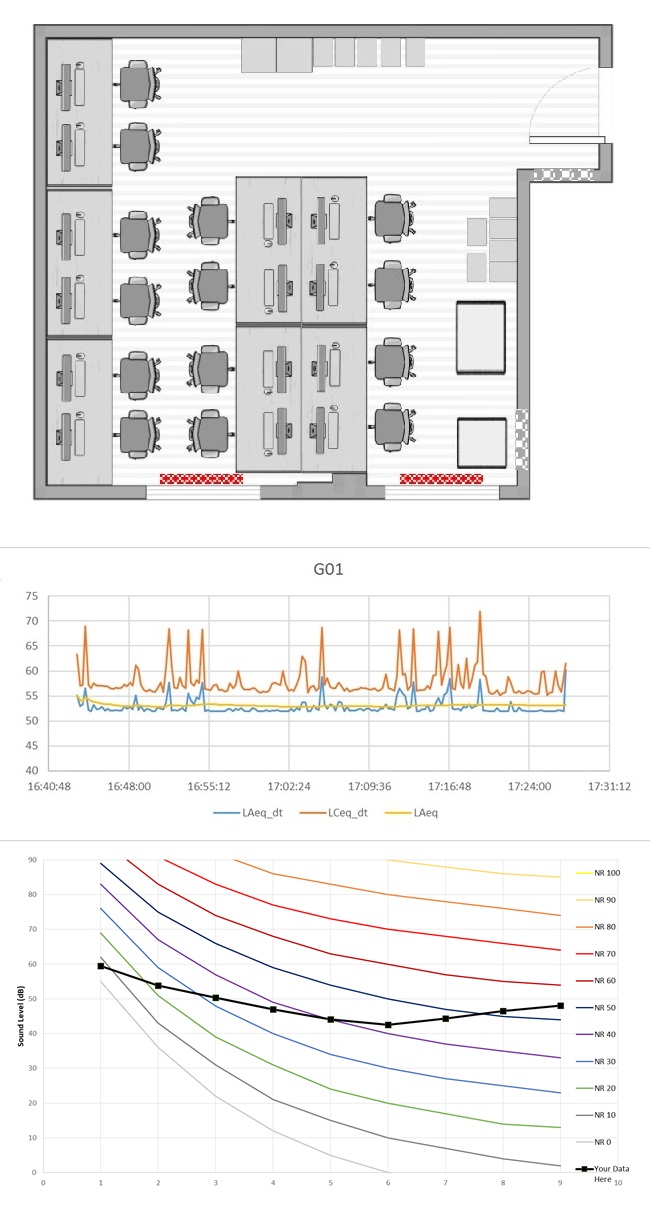

Room: G01 - IT cluster
Date: 27/04/18
Period: 16:43-17:27
Duration: 44min
Weather condition: Light rain
Equipment: NTi Audio XL2 Sound Level Meter
Occupation level: Moderate
NR: 54 (Guide A 35-45)
LAFmax: 75.6dB
LAFmin: 51.6dB
LAeq: 53.2dB (Guide A 40-50)
LCeq: 60.0dB (Guide A 65-75)
A computer cluster able to accomadate up to 14 students. Acoustic levels are low in the lower frequency spectrum but rise above guidelines for the higher range. Outdoor noise is not an issue thanks to the secondary glazing of the two windows. Noise mainly comes from the reception corridor when the door to the cluster is open. Annoying sources of noise include the slamming of the door and constant tapping on the computer keyboards.

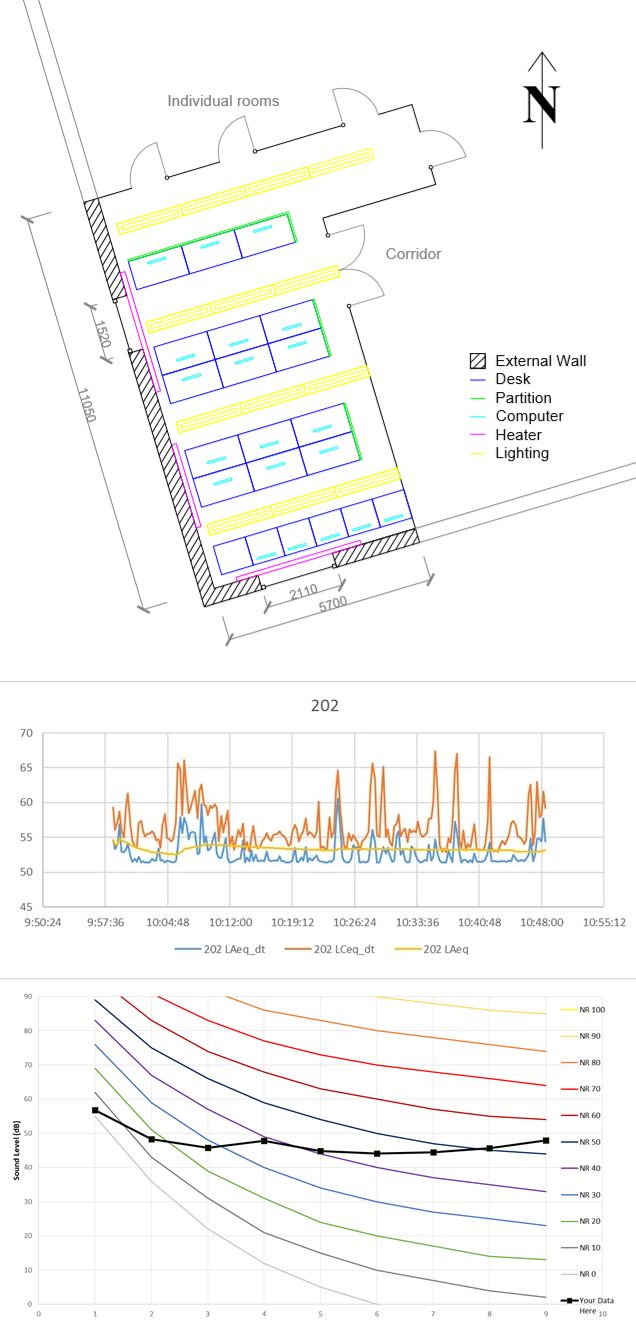

Room: 202 - Open plan office
Date: 27/04/18
Period: 9:58-10:48
Duration: 50min
Weather condition: Moderate rain
Equipment: NTi Audio XL2 Sound Level Meter
Occupation level: Moderate-high
NR: 54 (Guide A 35)
LAFmax: 74.8dB
LAFmin: 51.1dB
LAeq: 53.1dB (Guide A 35)
LCeq: 58.1dB (Guide A 60)
An open-plan office for PhD. Two windows facing the courtyard. Raining and windows open during the measurement. Better acoustic performance at lower frequency level. Main sources of noise consist of computer cases, keyboard typing, mouse clicking, occasional people talking in the neighbour seminar room, and the noise from the outside (rain, traffic). Overall noise level higher than the guideline values while the user satisfaction level is still relatively high.

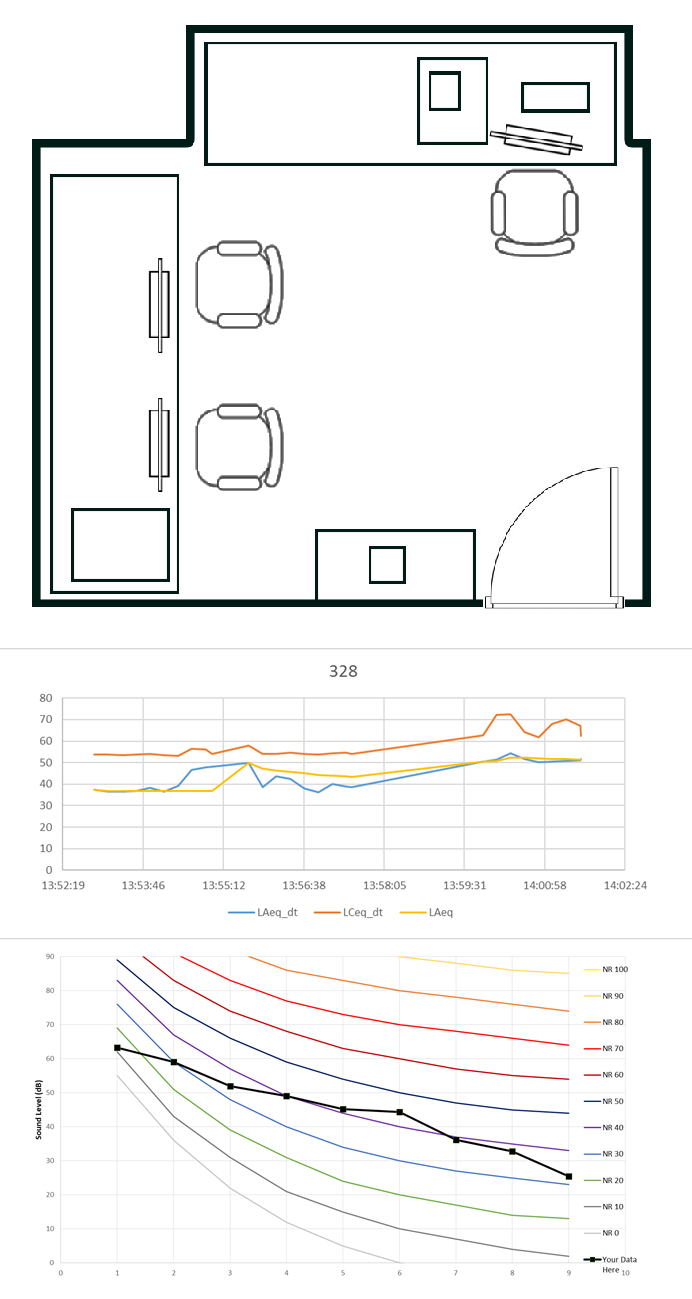

Room: 328 - Small office
Date: 27/04/18
Period: 13:53-14:01
Duration: 8min
Weather condition: Broken clouds
Equipment: NTi Audio XL2 Sound Level Meter
Occupation level: Low
NR: 45 (Guide A 35)
LAFmax: 57.1dB
LAFmin: 48.2dB
LAeq: 51.5dB (Guide A 35)
LCeq: 68.8dB (Guide A 60)
The office in room 328 is occupied by 3 people. Acoustically, the internal environment is very good for working. It looks onto the quiet courtyard, so is minimally affected by the outdoors and the ambient noise levels are so close to white noise that they do not cause distraction. Due to the minimal amount of people in the room, noises made by the occupants are unlikely to be problematic.

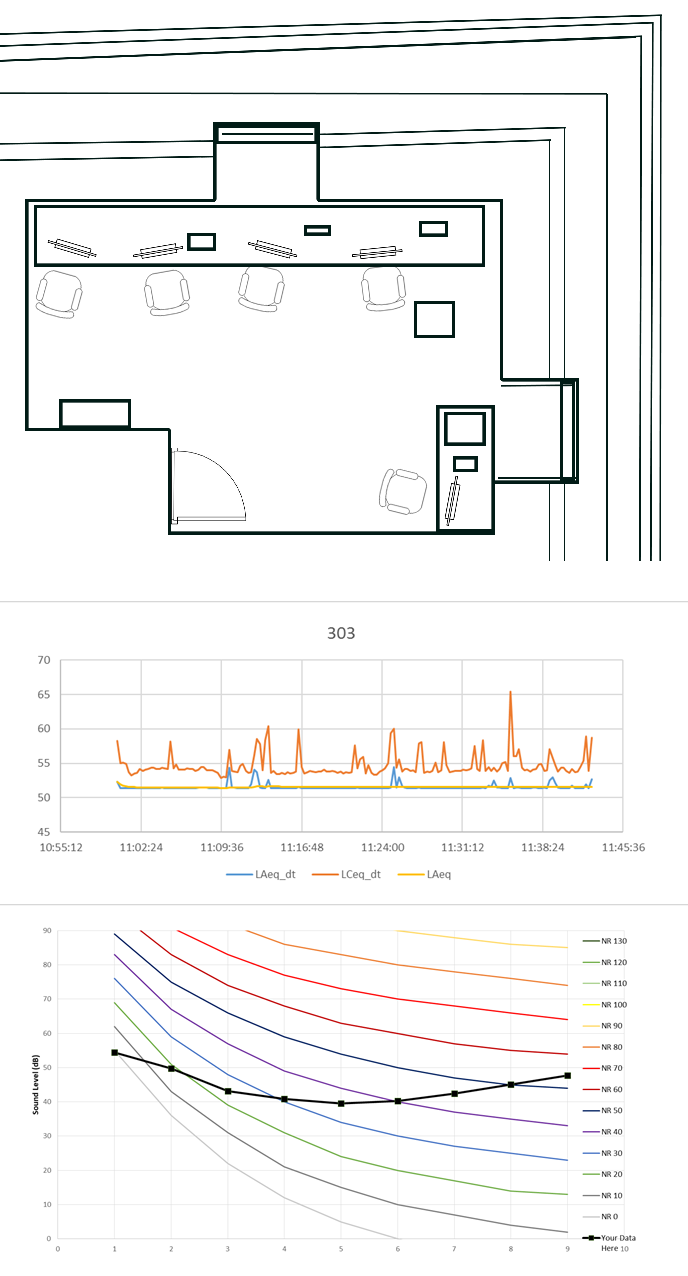

Room: 303 - Open plan office
Date: 03/05/18
Period: 11:00-11:42
Duration: 42min
Weather condition: Partly sunny
Equipment: NTi Audio XL2 Sound Level Meter
Occupation level: Low
NR: 54 (Guide A 35)
LAFmax: 78.1dB
LAFmin: 51.1dB
LAeq: 51.8dB (Guide A 35)
LCeq: 55.7dB (Guide A 60)
An office occupied by 7 people. Only one person present in the room during the measurement. Two windows facing the courtyard. Main sources of noise consist of computers, printing machines, keyboard typing, mouse clicking, occasional people talking in corridor, and noise from the outside traffic. Overall noise level is slightly higher than guideline values.

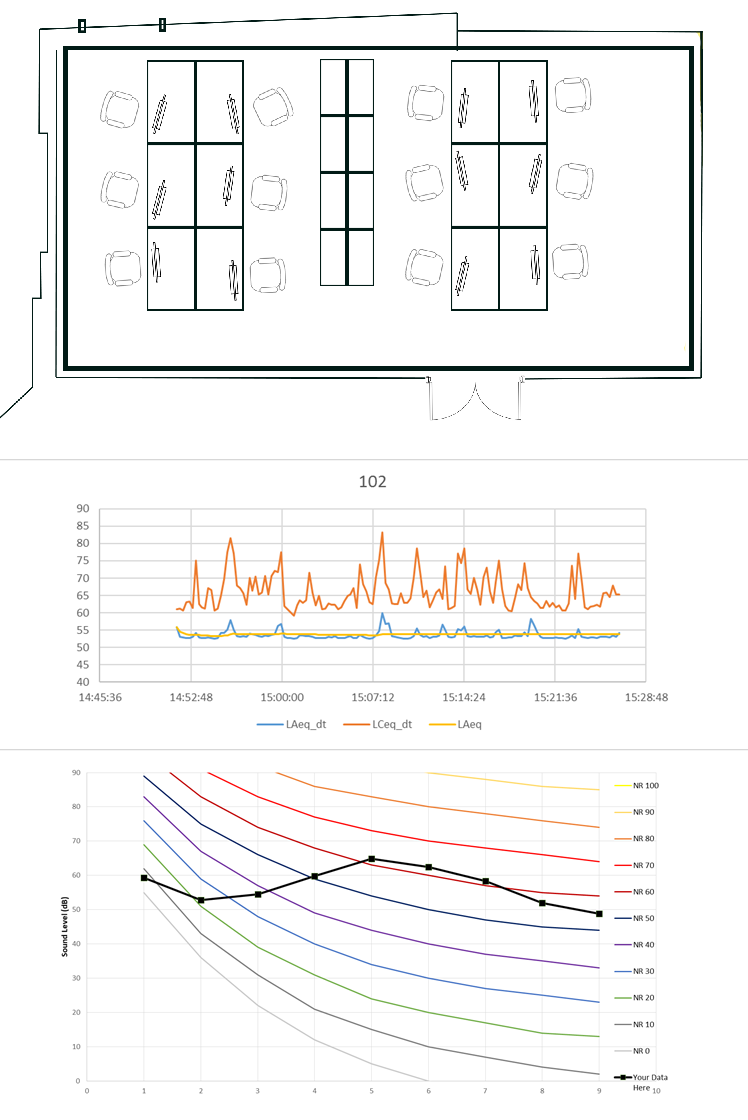

Room: 102 - Open plan office
Date: 01/05/18
Period: 14:51-15:26
Duration: 35min
Weather condition: Broken clouds
Equipment: NTi Audio XL2 Sound Level Meter
Occupation level: /
NR: 60 (Guide A 35)
LAFmax: 71.3dB
LAFmin: 52.1dB
LAeq: 53.8dB (Guide A 35)
LCeq: 70.2dB (Guide A 60)
An open-plan office for PhD students. Low occupancy during Term 3. Five windows facing the courtyard. Quiet conversation happening during measurements. Main sources of noise consist of computer cases, keyboard typing, mouse clicking, occasional people talking in the neighbouring 4-occupant office, and the noise from the outside (rain, traffic). Overall noise level higher than the guideline values while the user satisfaction level is still relatively high.
Room: B01 - lecture theatre
Date: 27/04/18
Period: 15:08-06:05
Duration: 47min
Weather condition: Light rain
Equipment: NTi Audio XL2 Sound Level Meter
Occupation level: Not occupied
NR: 37 (Guide A 25-35)
LAFmax: 66.1dB
LAFmin: 66.1dB
LAeq: 43.0dB (Guide A 30-40)
LCeq: 56.8dB (Guide A 55-65)
B01 is well insulated, therefore isolating it from the atrium and the main road on either side of the room. Background noise levels are low, considering there is both a mechanical and natural ventilation system in the room.

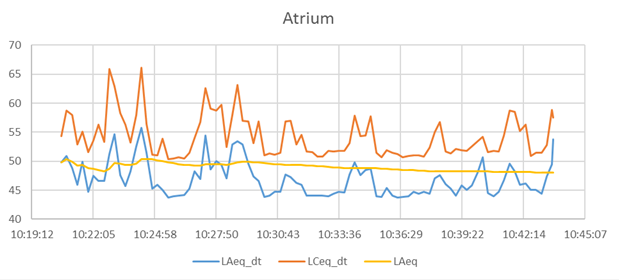

Room: Atrium
Date: 27/04/18
Period: 10:20-10:43
Duration: 23min
Weather condition: Moderate rain
Equipment: NTi Audio XL2 Sound Level Meter
Occupation level: Not occupied
NR: / (Guide A 35-45)
LAFmax: 65.0dB
LAFmin: 43.0dB
LAeq: 48.0dB (Guide A 40-50)
LCeq: 56.2dB (Guide A 65-75)

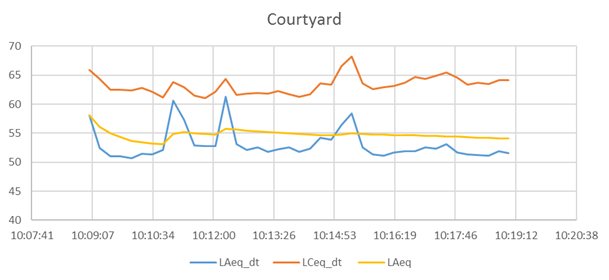

Room: Courtyard
Date: 27/04/18
Period: 10:08-10:19
Duration: 11min
Weather condition: Moderate rain
Equipment: NTi Audio XL2 Sound Level Meter
Occupation level: Not occupied
NR: /
LAFmax: 74.9dB
LAFmin: 49.5dB
LAeq: 54.1dB
LCeq: 63.6dB
